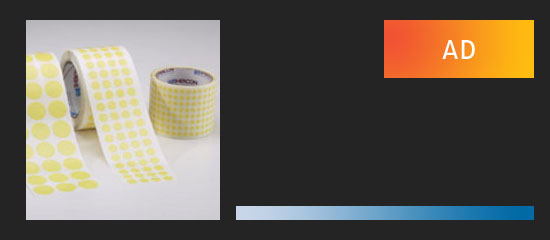

AD Anodizing Discs
Description
These discs are provided in a range of metric and imperial sizes. Discs are provided on a liner, which is wound on a core. The tape that the discs are made from is conformable, will remove cleanly, is abrasion resistant and is chemically resistant.
Recommended for
Hard Anodizing, Soft Anodizing
Temperature Range
Maximum temperature 170°F (77°C)
Availability
In addition to these discs, Anodizing tape is available in roll form in a range of imperial and metric widths. It is also available as pre-cut, rectangles, squares, and donuts. Anodizing tape is also available as die cut shapes.
Storage conditions
Items should be stored in dry conditions at an ambient temperature of between 55°F (13°C) and 85°F (30°C). It is important to rotate stock and use the product in the order that it is received. Rolls of discs or die cuts should be stored on end.
Specification
| Description | Value | ASTM Test Method |
|---|---|---|
| Film thickness | 6.3 Mil (1.60 mm) | D-3652 |
| Adhesive thickness | 0.8 Mil (0.20 mm) | D-3652 |
| Total thickness | 7.1 Mil (1.80 mm) | D-3652 |
| Color | Tan | |
| Adhesive | Rubber | |
| Elongation at break | 180% | D-3759 |
| Tensile strength | 20lb / inch (350N / 100mm) | D-3759 |
| Adhesion to steel | 26 oz / inch (28N / 100mm) | D-3330 |
| Temperature range | 40°F to 170°F (4°C to 77°C) | |
| Storage conditions | Keep in dry conditions | |
| Removability | Good to excellent | |
| Tolerances | Discs can be cut to ±0.005" (±0.127mm) |
Custom
Custom diameters and shapes are available.
